Golden Eagle Core Areas: Discriminant Analysis

Examine the table of means, it is apparent that the regions are very different with respect to certain variables. For example, region 1 has no wet heath and very little land below 200 m, however it does have a lot of bog.

Group Statistics
	Mean	SD	Mean	SD	Mean	SD	Mean	SD
REGION	1 (n = 7)		2 (n = 16)		3 (n = 17)		Total (n = 40)
POST	1.7	1.52	0.9	2.44	2.7	2.95	1.8	2.63
PRE	3.7	1.76	0.8	2.10	2.0	3.03	1.8	2.64
BOG	13.2	2.61	4.5	2.77	8.7	3.82	7.8	4.46
CALL	0.8	0.76	2.0	2.38	2.9	2.10	2.2	2.16
WET	0.0	0.00	7.4	3.26	1.5	1.09	3.6	2.83
STEEP	4.4	1.39	9.3	5.02	1.9	0.78	5.3	4.70
LT200	4.5	4.07	12.4	5.33	19.9	4.34	14.2	7.33
L4_600	4.7	5.11	3.2	3.29	0.0	0.03	2.1	3.43

top

Discriminant functions

When there are more than 2 groups it may be possible to construct more than one discriminant function. Indeed the maximum number of discriminant functions that can be obtained is the lesser of:

the number of groups - 1
the number of predictor variables

Since there are 3 groups and 8 variables the maximum number of discriminant functions is 2.

Summary of Canonical Discriminant Functions

Eigenvalues
Function	Eigenvalue	% of Variance	Cumulative %	Canonical Correlation
1	4.513(a)	67.2	67.2	0.905
2	2.198(a)	32.8	100.0	0.829
a First 2 canonical discriminant functions were used in the analysis.

Recall that Wilk's lambda is a measure of the discriminating power remaining in the variables, and that values close to 0 indicate high discriminating power. The first value relates to the first function, the second relates to the second function and is measured after removing the discriminating power associated with the first function.

Wilks' Lambda
Test of Function(s)	Wilks' Lambda	Chi-square	df	Sig.
1 through 2	0.057	96.134	16	0.000
2	0.313	38.945	7	0.000

In this case both functions are significant so both should be retained.

Standardized Canonical Discriminant Function Coefficients
	Function
	1	2
POST	0.058	0.516
PRE	-0.134	0.027
BOG	-0.201	0.849
CALL	0.338	0.103
WET	0.866	-0.063
STEEP	0.537	0.546
LT200	0.668	1.535
L4_600	-0.138	0.221

The Structure Matrix table below shows that:

function 1 is mainly associated with large areas of wet heath and steep ground, and only small areas of bog (negative correlation). Thus, cases with a positive score on function 1 tend to have more wet heath and steep ground and less bog.
function 2 is mainly associated with large areas of land below 200m and small areas of steep land, land between 400 & 600m and wet heath. Thus, cases with a positive score on function 2 tend to have more land below 200m, but less steep land and land between 400 & 600 m.

Structure Matrix
	Function
	1	2
WET	0.631(*)	-0.428
BOG	-0.467(*)	0.053
PRE	-0.197(*)	-0.010
LT200	0.198	0.784(*)
STEEP	0.326	-0.555(*)
L4_600	-0.037	-0.443(*)
CALL	0.075	0.242(*)
POST	-0.077	0.194(*)
Pooled within-groups correlations between discriminating variables and standardized canonical discriminant functions Variables ordered by absolute size of correlation within function.
* Largest absolute correlation between each variable and any discriminant function

Examining the group centroids allows us to see how the functions separate the groups.

function 1 separates area 1 from area 2 (-3.2 and +.2.0), with area 3 in between them (-0.4).
function 2 separates area 3 (+1.6) from the other two (-1.7 and -1.0).

Functions at Group Centroids
	Function
REGION	1	2
1	-3.726	-1.680
2	2.049	-1.003
3	-0.394	1.636
Unstandardized canonical discriminant functions evaluated at group means

top

Classification Statistics

The prior probabilities (of class membership) are to be equal, thus they are all 0.333. An alternative weighting would have been to set them to group sizes. For example, this would have given region 1 a prior probability of 0.175 (7/40).

Prior Probabilities for Groups
	Prior	Cases Used in Analysis
REGION	Prior		Unweighted
1	0.333	7	7.000
2	0.333	16	16.000
3	0.333	17	17.000
Total	1.000	40	40.000

Colour shaded territorial plot showing 3 groups. Groups 1 and 2 are at the base
separated along Function 1 (the x axis). Group 3 overlaps 1 and 2 on function 1 but is separated
by function 3 on the y axis.

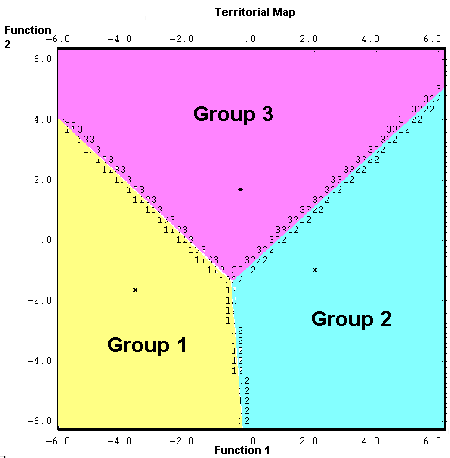

The territorial map (shaded to emphasis groups) highlights how the functions separate the groups (asterisks mark their centroids). Group membership is determined by the combination of function 1 and 2 scores. A coordinate that places a case in the yellow region would indicate a group 1 case.

In the table of case statistics the format is similar to that of the 2 group except that there is an extra column of discriminant function scores and it is possible to have misclassified cases in which even the second highest group is incorrect. [skip table]

Casewise Statistics
		Actual Group	Highest Group				Second Highest Group			Discriminant Scores
			Predicted Group		P(G=g \| D=d)	Squared Mahalanobis Distance to Centroid	Group	P(G=g \| D=d)	Squared Mahalanobis Distance to Centroid	Function 1	Function 2
	Case No.		Predicted Group	P(D>d \| G=g)	P(G=g \| D=d)	Squared Mahalanobis Distance to Centroid	Group	P(G=g \| D=d)	Squared Mahalanobis Distance to Centroid	Function 1	Function 2
Original	1	3	3	.620	1.000	.958	2	.000	16.778	-.012	2.537
	2	3	3	.231	.999	2.929	2	.001	18.112	.628	3.009
	3	3	3	1.000	.998	.000	2	.002	12.922	-.391	1.637
	4	3	3	.610	.999	.989	1	.000	16.500	-1.388	1.642
	5	3	3	.897	.996	.217	2	.003	11.563	-.546	1.195
	6	3	3	.263	.976	2.669	1	.024	10.086	-1.839	.874
	7	2	2	.860	1.000	.302	3	.000	17.150	2.369	-1.450
	8	2	2	.445	.996	1.619	3	.004	12.564	2.773	.043
	9	2	3(**)	.206	.536	3.162	2	.464	3.450	.602	.162
	10	2	3(**)	.254	.631	2.738	2	.369	3.809	.830	.522
	11	2	2	.656	1.000	.845	3	.000	19.678	2.304	-1.886
	12	2	2	.014	1.000	8.538	3	.000	41.981	3.525	-3.525
	13	2	2	.774	.999	.512	3	.001	15.465	2.723	-.763
	14	3	3	.278	.755	2.559	2	.245	4.814	1.053	.952
	15	3	3	.152	.894	3.764	1	.096	8.234	-1.372	-.040
	16	3	3	.777	.998	.505	2	.001	13.774	-.946	1.189
	17	3	3	.540	1.000	1.233	2	.000	19.349	-.264	2.739
	18	3	3	.982	.998	.036	2	.002	12.651	-.500	1.478
	19	3	3	.211	.938	3.115	2	.043	9.291	-.853	-.068
	20	3	3	.707	.999	.694	2	.001	15.576	-.001	2.370
	21	3	3	.988	.999	.024	2	.001	13.414	-.541	1.587
	22	3	3	.863	1.000	.296	2	.000	16.935	-.619	2.130
	23	3	3	.932	.996	.141	2	.004	11.062	-.019	1.602
	24	3	3	.172	.999	3.515	2	.001	17.084	.920	2.973
	25	2	2	.544	.924	1.217	3	.076	6.216	1.271	-.221
	26	2	2	.482	1.000	1.460	3	.000	22.711	2.581	-2.088
	27	2	2	.108	.993	4.454	3	.005	15.227	.312	-2.202
	28	2	2	.887	1.000	.239	3	.000	15.920	2.086	-1.490
	29	2	2	.225	.590	2.982	3	.410	3.709	1.132	.461
	30	2	2	.836	.988	.359	3	.012	9.220	1.811	-.453
	31	2	2	.277	.735	2.569	3	.265	4.609	.634	-.249
	32	2	2	.121	1.000	4.224	3	.000	24.886	4.065	-.603
	33	2	2	.099	1.000	4.627	3	.000	32.789	3.760	-2.306
	34	1	1	.555	1.000	1.177	3	.000	33.372	-4.599	-2.325
	35	1	1	.355	.992	2.070	3	.008	11.764	-2.387	-1.156
	36	1	1	.789	1.000	.475	3	.000	29.054	-4.221	-2.160
	37	1	1	.615	.999	.972	3	.001	15.169	-2.767	-1.452
	38	1	1	.673	1.000	.792	3	.000	23.128	-4.372	-1.067
	39	1	1	.514	.996	1.331	3	.004	12.633	-2.834	-.948
	40	1	1	.311	1.000	2.334	3	.000	38.734	-4.906	-2.651
Cross- validated (a)	1	3	3	.817	1.000	4.429	2	.000	19.707
	2	3	3	.121	.999	12.737	2	.001	26.834
	3	3	3	.959	.998	2.550	2	.002	14.832
	4	3	3	.001	.981	27.488	1	.019	35.355
	5	3	3	.999	.996	.878	2	.004	11.800
	6	3	3	.235	.882	10.453	1	.117	14.490
	7	2	2	.868	1.000	3.880	3	.000	20.306
	8	2	2	.001	.959	25.752	3	.041	32.037
	9	2	3(**)	.669	.789	5.808	2	.211	8.444
	10	2	3(**)	.024	.999	17.627	2	.001	30.883
	11	2	2	.136	1.000	12.354	3	.000	31.355
	12	2	2	.007	1.000	21.157	3	.000	66.711
	13	2	2	.971	.999	2.285	3	.001	16.706
	14	3	2(**)	.146	.756	12.121	3	.244	14.377
	15	3	3	.386	.735	8.501	1	.242	10.721
	16	3	3	.164	.995	11.724	2	.003	23.399
	17	3	3	.432	1.000	8.010	2	.000	26.007
	18	3	3	.998	.998	1.081	2	.002	13.224
	19	3	3	.400	.829	8.350	2	.112	12.360
	20	3	3	.707	.999	5.466	2	.001	19.625
	21	3	3	.670	.998	5.799	2	.002	18.235
	22	3	3	.897	1.000	3.528	2	.000	19.754
	23	3	3	.036	.981	16.490	2	.019	24.432
	24	3	3	.235	.998	10.442	2	.002	22.626
	25	2	2	.759	.867	4.987	3	.133	8.744
	26	2	2	.247	1.000	10.269	3	.000	32.484
	27	2	1(**)	.000	.911	29.269	2	.080	34.122
	28	2	2	.526	.999	7.102	3	.001	22.058
	29	2	3(**)	.040	.982	16.159	2	.018	24.136
	30	2	2	.251	.962	10.206	3	.038	16.687
	31	2	3(**)	.044	.925	15.889	2	.075	20.927
	32	2	2	.623	1.000	6.216	3	.000	27.273
	33	2	2	.114	1.000	12.949	3	.000	45.958
	34	1	1	.757	1.000	5.003	3	.000	37.045
	35	1	1	.124	.877	12.675	3	.121	16.639
	36	1	1	.980	1.000	2.018	3	.000	29.929
	37	1	1	.275	.993	9.865	3	.007	19.847
	38	1	3(**)	.000	.747	89.792	1	.253	91.955
	39	1	1	.784	.992	4.747	3	.008	14.292
	40	1	1	.124	1.000	12.654	3	.000	50.946
For the original data, squared Mahalanobis distance is based on canonical functions. For the cross-validated data, squared Mahalanobis distance is based on observations.
** Misclassified case
a Cross validation is done only for those cases in the analysis. In cross validation, each case is classified by the functions derived from all cases other than that case.

Again the results are summarised in confusion matrices, this time 3 x 3 because there are 3 groups.

Classification Results(b,c)
			Predicted Group Membership			Total
		Region	1	2	3	Total
Original	Count	1	7	0	0	7
		2	0	14	2	16
		3	0	0	17	17
	%	1	100.0	.0	.0	100.0
		2	.0	87.5	12.5	100.0
		3	.0	.0	100.0	100.0
Cross-validated(a)	Count	1	6	0	1	7
		2	1	11	4	16
		3	0	1	16	17
	%	1	85.7	.0	14.3	100.0
		2	6.3	68.8	25.0	100.0
		3	.0	5.9	94.1	100.0
a Cross validation is done only for those cases in the analysis. In cross validation, each case is classified by the functions derived from all cases other than that case.
b 95.0% of original grouped cases correctly classified.
c 82.5% of cross-validated grouped cases correctly classified.

The regions are very accurately predicted using the resubstitution (original) method, only two region 2 cases are misclassified. Even using the cross-validated method accuracy remains good, although five region 2 cases are now misclassified.

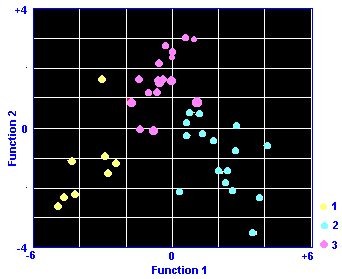

The results are shown graphically. Axes are the the two discriminant functions and the coordinates are the scores on the two axes. Regions are colour coded.

Scatter of dis2_2 dis1_2 by region. Region 3 (pink) is
at the top of the plot, separated from the other two groups along the y axis (Function 2).
Groups 1 and 1 are at the base of the plot and separated along the x axis (Function 1).

In summary

Using these habitat variables we can discriminate between the core area habitats of golden eagles living in 3 Scottish regions.
We have identified how the habitats differ, two gradients were detected.

However, rather a large number of variables (8) were used with a relatively small number of cases (40). Such ratios tend to give very good separation. Various ratios have been suggested in the literature. The range of n:p is between 3:1 and 5:1, where n is the smallest group size and p is the number of predictors. The smallest group size was seven suggesting that no more than 2 predictors should be used.

The next analysis uses a stepwise analysis in an attempt to reduce the predictor dimensionality.
